Use assets

In the previous tutorial you learned how to describe UI with Emerge.UI.

The next step is to bring real media into that UI: images, SVGs, background images, and custom fonts.

Assets in Emerge are still declarative. You describe a source in your UI tree, and the renderer resolves it for you.

Static assets live under priv/

Logical asset paths resolve from your app's priv/ directory.

For example:

• priv/images/logo.png
• priv/images/hero.jpg
• priv/icons/check.svg
• priv/fonts/Inter-Regular.ttf

You can refer to those files by logical path string, or you can use the ~m sigil for compile-time verification.

Start with logical path strings

The simplest source form is a logical path string:

image([width(px(120)), height(px(120))], "images/logo.png")

svg([width(px(24)), height(px(24))], "icons/check.svg")

el(
  [
    width(px(320)),
    height(px(180)),
    Background.image("images/hero.jpg", fit: :cover)
  ],
  none()
)

Logical paths are resolved from the otp_app you pass to EmergeSkia.start/1 or that the viewport infers for you.

Prefer ~m in app code

Import Emerge.Assets.Path in the module where you describe UI:

defmodule MyApp.UI do
  use Emerge.Assets.Path, otp_app: :my_app
  use Emerge.UI
end

Then you can write compile-time verified paths:

~m"images/logo.png"
~m"images/hero.jpg"
~m"icons/check.svg"

~m verifies that the file exists under priv/ at compile time and tracks it as an external resource.

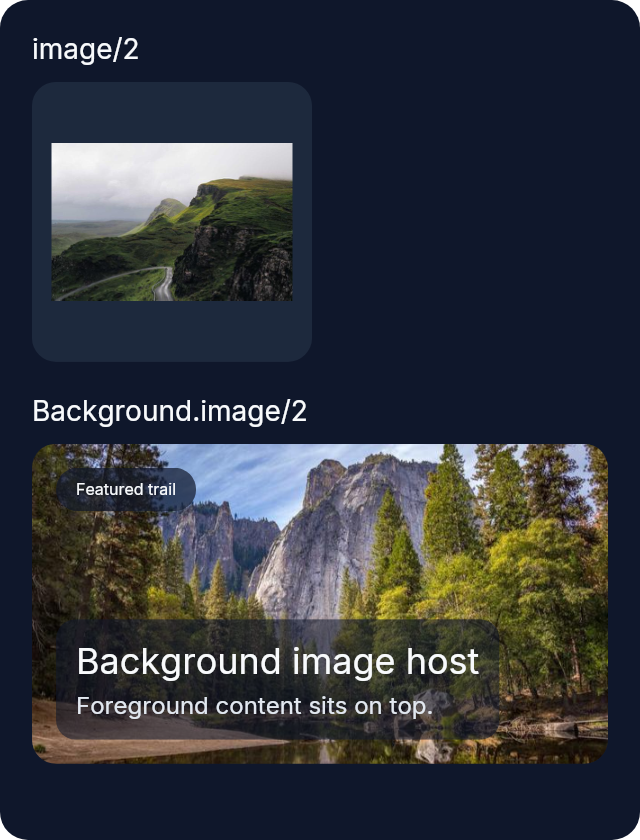

Show an image and a background image

This example uses a normal image element and a background image on a framed element:

column(
  [
    width(fill()),
    height(fill()),
    padding(16),
    spacing(16),
    Background.color(color(:slate, 900)),
    Border.rounded(14)
  ],
  [
    column([spacing(8)], [
      el([Font.color(color(:slate, 50)), Font.size(14)], text("image/2")),
      el(
        [
          padding(10),
          Background.color(color(:slate, 800)),
          Border.rounded(12)
        ],
        image([width(px(120)), height(px(120)), Border.rounded(10)], "sample_assets/static.jpg")
      )
    ]),
    column([spacing(8)], [
      el([Font.color(color(:slate, 50)), Font.size(14)], text("Background.image/2")),
      el(
        [
          width(px(288)),
          height(px(160)),
          padding(12),
          Background.image("sample_assets/fallback.jpg", fit: :cover),
          Border.rounded(12)
        ],
        column([height(fill()), spacing(8)], [
          el(
            [
              padding_xy(10, 6),
              Background.color(color_rgba(15, 23, 42, 0.7)),
              Border.rounded(999),
              Font.color(color(:slate, 50))
            ],
            text("Featured trail")
          ),
          el(
            [
              align_bottom(),
              padding(10),
              Background.color(color_rgba(15, 23, 42, 0.58)),
              Border.rounded(10),
              Font.color(color(:slate, 50))
            ],
            column([spacing(4)], [
              el([Font.size(18)], text("Background image host")),
              el([Font.size(12), Font.color(color(:slate, 200))], text("Foreground content sits on top."))
            ])
          )
        ])
      )
    ])
  ]
)

image/2 creates an image element.

Background.image/2 paints an image inside another element's frame.

Use SVG files

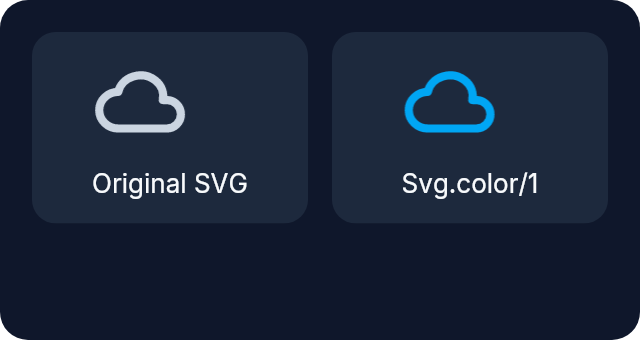

Use svg/2 when the source is an SVG:

row(
  [
    width(fill()),
    height(fill()),
    padding(16),
    spacing(12),
    Background.color(color(:slate, 900)),
    Border.rounded(14)
  ],
  [
    el(
      [
        width(fill()),
        padding(12),
        Background.color(color(:slate, 800)),
        Border.rounded(12)
      ],
      column([center_x(), spacing(8)], [
        svg([width(px(48)), height(px(48))], "sample_assets/template_cloud.svg"),
        el([Font.color(color(:slate, 50)), Font.size(13)], text("Original SVG"))
      ])
    ),
    el(
      [
        width(fill()),
        padding(12),
        Background.color(color(:slate, 800)),
        Border.rounded(12)
      ],
      column([center_x(), spacing(8)], [
        svg(
          [width(px(48)), height(px(48)), Svg.color(color(:sky, 500))],
          "sample_assets/template_cloud.svg"
        ),
        el([Font.color(color(:slate, 50)), Font.size(13)], text("Svg.color/1"))
      ])
    )
  ]
)

By default, SVGs keep their original colors.

Use Svg.color/1 when you want template-style tinting.

Background image fit modes

Background.image/2 defaults to fit: :cover.

Use:

• fit: :cover to fill the frame and crop if needed
• fit: :contain to keep the whole image visible
• Background.tiled/1, Background.tiled_x/1, and Background.tiled_y/1 for repeat modes

Example:

el(
  [
    width(px(220)),
    height(px(120)),
    Background.image("images/logo.png", fit: :contain),
    Border.rounded(12)
  ],
  none()
)

Configure fonts at renderer startup

Fonts work a little differently from images.

Images and SVGs are referenced directly in the UI tree.

Fonts are registered once when the renderer starts, and then selected in UI code by family, weight, and italic.

If you want multiple variants of the same family, register each variant:

{:ok, renderer} =
  EmergeSkia.start(
    otp_app: :my_app,
    title: "My App",
    assets: [
      fonts: [
        [family: "Inter", source: "fonts/Inter-Regular.ttf", weight: 400],
        [family: "Inter", source: "fonts/Inter-Bold.ttf", weight: 700],
        [family: "Inter", source: "fonts/Inter-Italic.ttf", weight: 400, italic: true]
      ]
    ]
  )

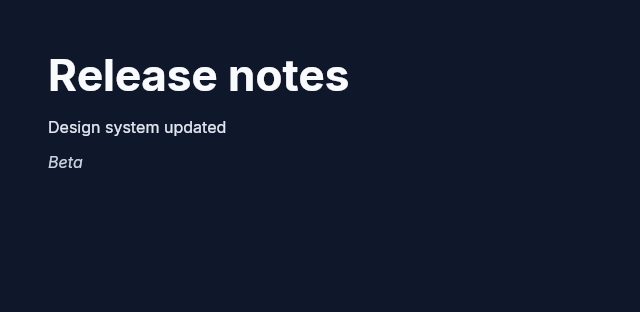

After that, use the configured family in UI code:

column(
  [
    width(fill()),
    height(fill()),
    padding(24),
    spacing(8),
    Background.color(color(:slate, 900)),
    Font.family("Inter")
  ],
  [
    el([Font.size(22), Font.bold(), Font.color(color(:slate, 50))], text("Release notes")),
    el([Font.regular(), Font.color(color(:slate, 200))], text("Design system updated")),
    el([Font.italic(), Font.color(color(:slate, 300))], text("Beta"))
  ]
)

The key idea is:

• family selects the registered family
• Font.bold/0 or Font.weight(700) selects the bold variant
• Font.italic/0 selects the italic variant

If you want a family to support multiple weights or italics, register those variants in assets.fonts.

Runtime filesystem paths

Emerge also supports runtime filesystem paths:

image([width(px(160)), height(px(96))], {:path, "/data/photos/photo.jpg"})

Runtime path loading is disabled by default.

Enable it only when needed, and use an explicit allowlist in EmergeSkia.start/1:

assets: [
  runtime_paths: [
    enabled: true,
    allowlist: ["/data/photos"],
    follow_symlinks: false
  ]
]

Asset start options

A font entry requires family and logical source; weight defaults to 400 and must be from 100 through 900, while italic defaults to false.

Asset source workers, configuration, registered fonts, and decoded caches are renderer-local. Concurrent renderers can use different source roots, runtime path policies, fonts, and cache limits.

Runtime file-size limits do not bound decoded dimensions or pixels. Validate asset dimensions before making untrusted files available to the renderer. The raster-cache limits bound retained decoded pixels, not peak decode allocation.

Bound decoded raster memory

Raster source files are compressed, but decoded pixels normally use four bytes per pixel. Cache limits apply independently to each renderer, so process-wide retention can reach the sum of all running renderers' limits. Configure decoded-raster retention independently from runtime file limits:

assets: [
  decode_at_size: true,
  cache: [
    max_entries: 32,
    max_bytes: 32 * 1024 * 1024
  ]
]

Defaults are 256 entries and 256 MiB across renderers in the same BEAM instance:

• max_entries limits how many decoded raster images stay available for reuse.
• max_bytes limits retained decoded pixels, not compressed file size.
• Setting either limit to 0 disables retained raster reuse for that limit. Images still decode and draw when requested.

SVG rendering is always available, including embedded builds; there is no optional SVG feature to enable.

Decode raster images at draw size

Set decode_at_size: true when large files are normally displayed at smaller sizes. Emerge decodes the image near the size at which it will be drawn instead of retaining the full source dimensions.

Reuse follows these rules:

• a retained raster at least as wide and tall as the new target is reused;
• a larger target requests and retains a larger decode;
• one content ID retains at most one decoded raster, so the larger decode replaces the smaller one;
• image fit, layout scale, and device-space draw size determine the target, not the source file dimensions alone.

decode_at_size defaults to false. Enable it for thumbnail grids and constrained devices where full-size decoded images would waste memory.

Read asset-memory diagnostics

Start with renderer_stats_log: true to include asset usage in each five-second summary:

asset memory
  sources: entries=4 encoded_bytes=430561
  raster cache: entries=1 bytes=120960 limits=entries:8 bytes:2097152
  vector cache: entries=2 bytes=32768 limits=entries:256 bytes:16777216
  raster variants
    source="images/photo.jpg" source_dimensions=1581x1333 decoded_dimensions=189x160 decoded_bytes=120960

Use raster cache to see retained decoded memory and compare source_dimensions with decoded_dimensions to confirm that decode_at_size: true is reducing image size. Set cache limits from the memory available to your device rather than from compressed file sizes.

What happens while assets load

Asset loading is asynchronous.

While a source is still loading, Emerge shows a loading placeholder. If loading fails, Emerge shows a failed placeholder.

You do not need to block rendering while assets are being resolved.

Next

Continue with Manage state to move application state out of the viewport as the UI grows.
