Emerge

Write native GUI directly from Elixir using a declarative API.

Installation

Emerge 0.5.0 introduces breaking configuration and raw-input changes. See the 0.5 migration guide when upgrading from 0.4.

Add :emerge to your dependencies:

defp deps do
  [
    {:emerge, "~> 0.5.0"}
  ]
end

Then run:

mix deps.get

Quick example

defmodule MyApp.View.Counter do
  use Emerge
  use Solve.Lookup

  @impl Viewport
  def mount(opts) do
    output = %Emerge.Config.Window{title: Keyword.get(opts, :title, "Counter")}
    {:ok, %Emerge.Config{output: output}}
  end

  @impl Viewport
  def render() do
    counter = solve(MyApp.State, :counter)

    row(
      [
        Background.color(color(:slate, 800)),
        Font.color(color(:white)),
        spacing(12),
        padding(12)
      ],
      [
        my_button([Event.on_press(event(counter, :increment))], text("+")),
        el([padding(10)], text("Count: #{counter.count}")),
        my_button([Event.on_press(event(counter, :decrement))], text("-"))
      ]
    )
  end

  # Reusable "component" is just plain elixir function
  def my_button(attrs, content) do
    Input.button(
      attrs ++ [
        padding(10),
        Background.color(color(:sky, 500)),
        Border.rounded(8)
      ],
      content
    )
  end

  @impl Solve.Lookup
  def handle_solve_updated(_updated, state), do: {:ok, Viewport.rerender(state)}
end

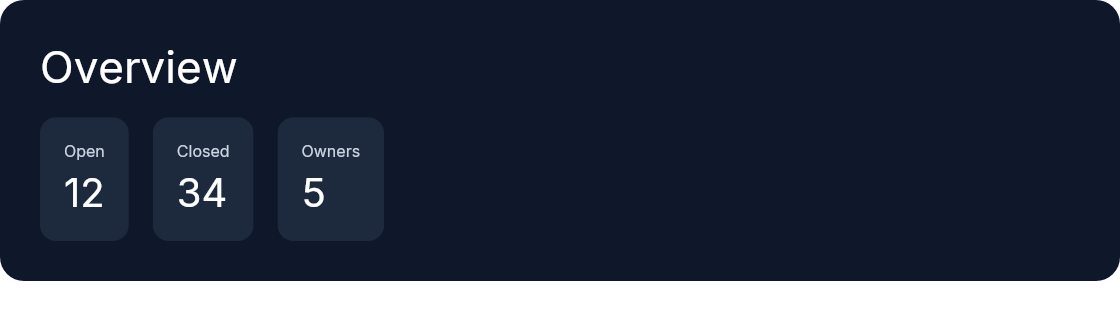

Easy reuse

Reuse in Emerge is just Elixir. Build data, map over it, and extract helpers that return UI trees.

defmodule MyApp.UI do
  use Emerge.UI

  def overview do
    column(
      [
        width(fill()),
        padding(20),
        spacing(12),
        Background.color(color(:slate, 900)),
        Border.rounded(12)
      ],
      [
        el([Font.size(22), Font.color(color(:white))], text("Overview")),
        row([spacing(12)], Enum.map(summary_stats(), &stat_card/1))
      ]
    )
  end

  defp summary_stats do
    [
      {"Open", "12"},
      {"Closed", "34"},
      {"Owners", "5"}
    ]
  end

  defp stat_card({label, value}) do
    el(
      [
        width(fill()),
        padding(12),
        Background.color(color(:slate, 800)),
        Border.rounded(8)
      ],
      column([spacing(4)], [
        el([Font.color(color(:slate, 300))], text(label)),
        el([Font.size(20), Font.color(color(:white))], text(value))
      ])
    )
  end
end

There is no separate component model to learn. If a function returns UI, you can compose it like any other Elixir function.

State management

Emerge is designed with Solve as a state management solution to keep complex UI apps sane. It keeps shared application state and rerender coordination outside the viewport process while Emerge stays focused on rendering.

Emerge does not depend on Solve. You can use another state management approach if it fits your app better.

Try it out

Take a look at emerge_demo example repository. It has https://todomvc.com/ app implentation so you can compare to web stacks and a showcase app that covers most of the UI features at the basic level.

For nerves example take a look at nerves_emerge_demo

Features

Build layout and styling in one declarative tree with el/2, row/2, column/2, and related helpers
Reuse UI with ordinary Elixir functions, data transforms, and Enum
Handle buttons, text input, keyboard, pointer events, and interactive states
Render images, SVGs, backgrounds, borders, text, and font assets
Use scroll containers, nearby overlays, paint-time and layout-aware transforms, and animation
Run the same renderer on macOS, Wayland, DRM, and headless runtimes with Metal, OpenGL, raster, and Vulkan rendering APIs
Change DRM display power and brightness with explicit OpenGL, Vulkan or raster, including GPU upload, while retaining viewport state

Backends and rendering APIs

The viewport documentation explains build features versus runtime output/API selection, Nerves/Raspberry Pi and SPI configuration, known-system defaults and rebuilding. Use mix emerge.build_info to inspect a build, or the standalone elixir deps/emerge/scripts/build-info.exs before native compilation succeeds. Canonical variants described there target 0.5.1, not existing 0.5.0 archives.

macOS provides desktop windows through the external macos_host, using Metal when available and falling back to raster.
Wayland provides Linux desktop windows with OpenGL or raster presentation.
DRM provides direct embedded, kiosk, and Nerves output with CPU raster, OpenGL ES 2 or newer, or Vulkan. Raster GPU upload is an explicit OpenGL-backed alternative.
Headless produces retained frame binaries or Linux PRIME/DMA-BUF output.
Vulkan provides supported rendering for Wayland, DRM, and headless PRIME when compiled for those backends.

Raster is a rendering API used by windowed and headless runtimes, not a separate viewport backend. macOS supports owned RGBA8888 binary video frames, but not DMA-BUF/PRIME video or retained-frame capture.

Each native renderer owns its asset source worker, source policy, registered fonts, decoded raster cache, and rendered vector cache. Concurrent renderers can use different asset roots, fonts, and cache limits without affecting each other.

Return %Emerge.Config{} from mount/1; use optional config(previous) or config(previous, state) callbacks for declarative live changes. Raw input observation is opt-in through input: [events: [:key, :resize]], separately from ordinary UI interactions. See configuration records and raw input for examples and backend limits. DRM display/brightness controls require an explicit drawing API. GPU-upload raster requires an OpenGL-enabled DRM build; Vulkan requires renderer.device. Off/on recreates the internal presenter, not the application state or public renderer. Exact renderer and frame contracts are documented by EmergeSkia.

Requirements

Elixir 1.19+
macOS for the :macos backend, or Linux with Wayland/DRM for Linux on-screen backends
OpenGL ES 2 or newer for OpenGL DRM and raster GPU upload, or a compatible Vulkan driver/device for Vulkan DRM; CPU raster requires no GPU driver
Rust 1.91 or newer when a source build is required

On macOS, Emerge downloads and caches the matching versioned macos_host runtime artifact automatically.

On DRM, optional GPU timer profiling and PRIME video import are enabled only when the driver advertises their required GL/EGL extensions. Missing optional capabilities do not prevent ordinary UI rendering; PRIME video targets report an unsupported-capability error when DMA-BUF/external-image import is unavailable.

Documentation

API reference and tutorials are published on HexDocs.

The tutorials build on one another:

Attribution

Emerge's UI API is heavily inspired by elm-ui by Matthew Griffith.

Third-Party Assets

Bundled third-party asset notices are documented in THIRD_PARTY_ASSETS.md. Package/runtime-relevant notices are summarized in NOTICE.

Packaged/runtime-relevant asset groups:

Inter default fonts in native/emerge_skia/src/fonts/inter - SIL Open Font License 1.1
JetBrains Mono NL fonts in native/emerge_skia/src/fonts/jetbrains-mono - SIL Open Font License 1.1
Mocu DRM cursor SVGs in native/emerge_skia/src/backend/drm/cursors/mocu_black_right - CC0 1.0 Universal
Tabler-derived sample SVG in priv/sample_assets/template_cloud.svg - MIT
Sample photos in priv/sample_assets - Unsplash License; credits and source hashes are included in priv/sample_assets/SOURCES.md

If you redistribute Emerge inside an application or firmware image, include the applicable notice files.
